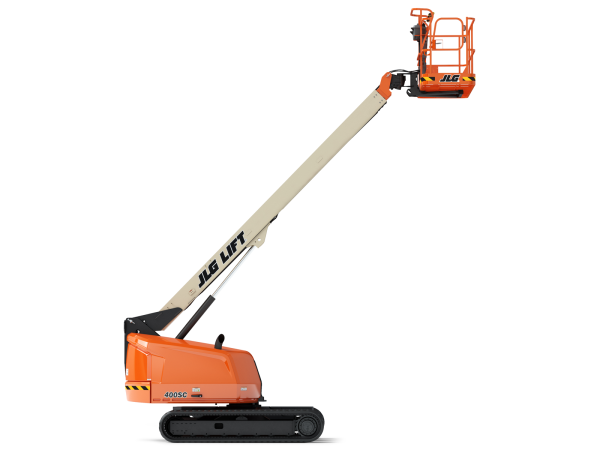

Description

Specifications

• Auxiliary Power: 12 Volts DC
• Capacity - Fuel Tank: 22 gal. / 83.28 L
• Capacity - Hydraulic Reservoir: 36 gal. / 136.27 L
• Drive Speed - 4WD: 1.6 mph / 2.57 km/h
• Engine Type - Diesel: Deutz D2.9L4 Tier 4 Final 49 hp (36.4 kW)
• Gradeability - 4WD: 51 %
• Ground Clearance: 1 ft 1 in. / 0.32 m
• Horizontal Outreach: 33 ft / 10.06 m
• Machine Height: 7 ft 8 in. / 2.32 m
• Machine Length: 24 ft 10 in. / 7.57 m
• Machine Weight: 14559 lb / 6603.85 kg
• Machine Width: 7 ft 4 in. / 2.24 m
• Maximum Ground Bearing Pressure: 5.2 psi / 0.36 Kg/cm2
• Platform Capacity - Restricted: 1000 lb / 453.59 kg
• Platform Capacity - Unrestricted: 600 lb / 272.16 kg
• Platform Height: 39 ft 7 in. / 12.05 m
• Swing: 360 Degrees
• Tailswing: 3 ft 2 in. / 0.97 m
• Track Width: 1 ft 4 in. / 0.4 m

Features

• More Durability - DuraTough hood is highly impact resistant for less maintenance and greater protection of interior components
• Improved Fuel Efficiency - Variable-speed engine control reduces operating costs and engine wear and tear
• Enhanced Productivity - Faster function speeds and multifunction capability allow operators to perform more functions at once
• Superior Terrainability - Full-size tracks make areas with soft ground, mud, sand and snow accessible
• Industry-leading Capacity - Dual capacity and 600-lb unrestricted/1,000-lb restricted capacity allow operators to carry more tools
• SkyGuard® Enhanced Control Panel Protection – Standard feature that helps decrease the likelihood of operator caught-between injuries while working at height
• Increased Work Envelope - 360 degrees of continuous rotation lets operators reach more and reposition less
